Fluid Mechanics & Hydraulic Machines

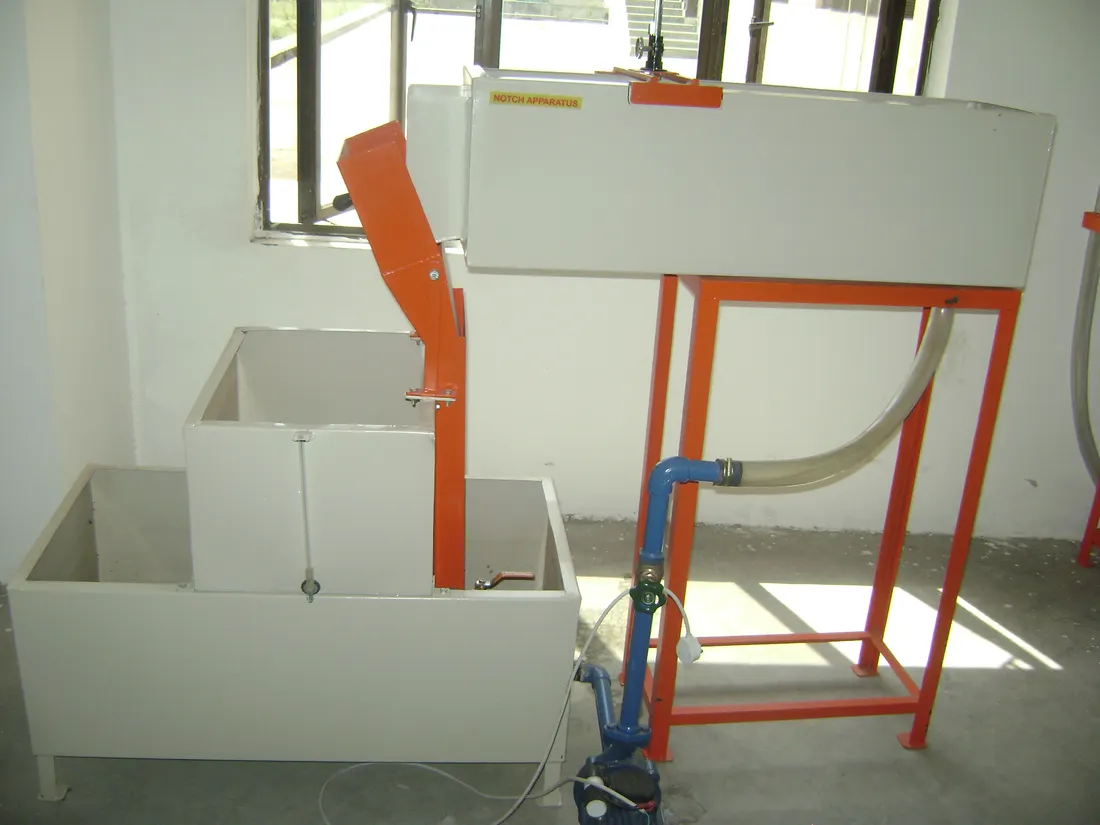

Notch Apparatus (Rectangular & V-Notch)
Flow channel with interchangeable rectangular, triangular and trapezoidal notches and hook gauge.
EXPERIMENTS COVERED
- 01Coefficient of discharge of notches
- 02Head–discharge relationship
Experiment manual
Theory, procedure and observation tables supplied with every unit.
Install & demo
On-site commissioning and faculty demonstration by our engineers.
Run-tested
Every apparatus is assembled and tested at our Roorkee works.
Pan-India dispatch
Safe crating and delivery to institutions across India and abroad.
